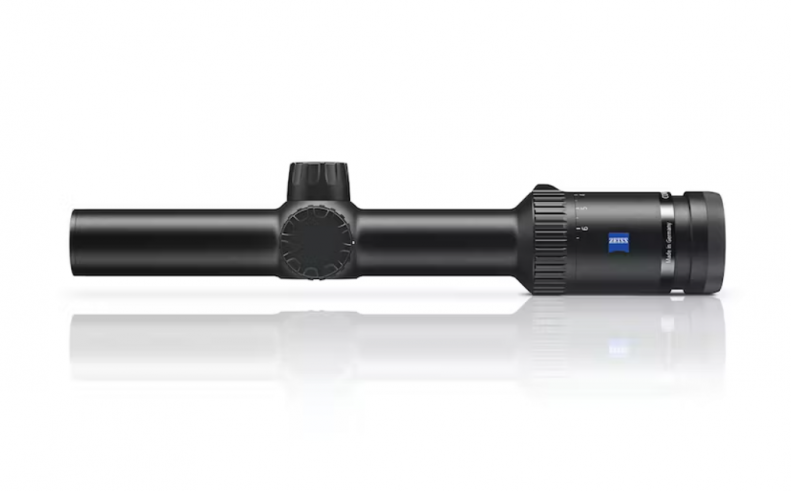

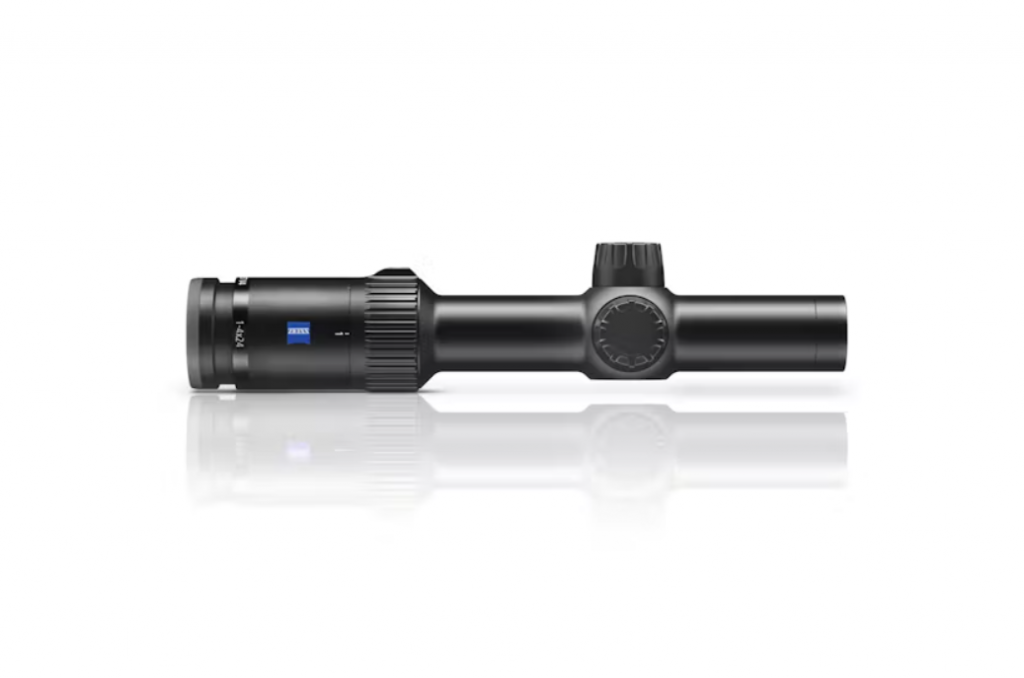

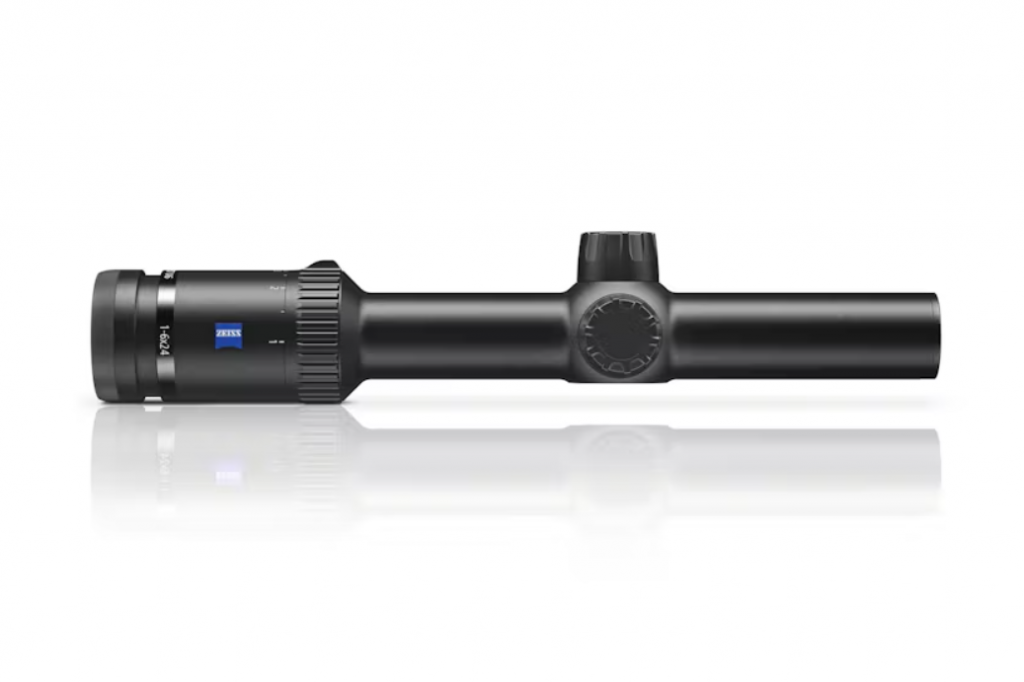

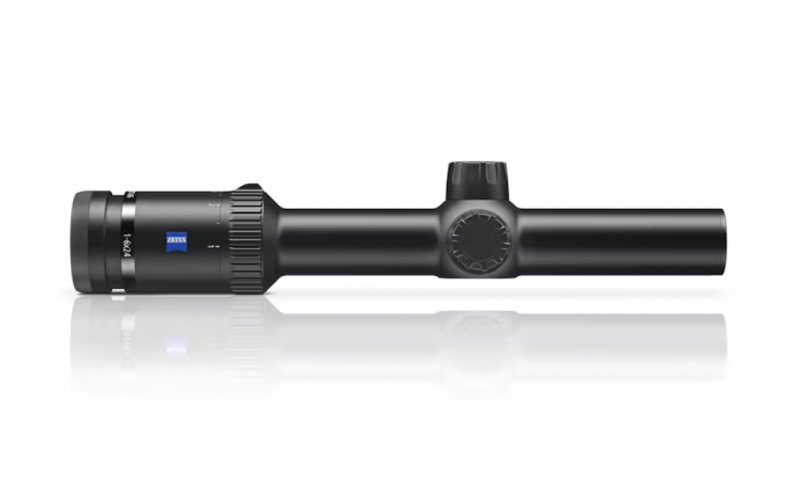

Zeiss Conquest V4 1-4 x 24
Zeiss Conquest V4 1-4 x 24
| Magnification |
1 – 4 x |
| Effective lens diameter |
12.1 – 24 mm |
| Light transmission |
90% |
| Exit pupil diameter |
11.9 – 6 mm |
| Twilight factor |
3.5 – 9.8 |
| Field of view at 100 m (yds) |
38 – 9.5 m (114 – 29 ft) |
| Objective viewing angle |
21.5° – 5.4° |
| Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
| Eye relief |
90 mm (3.54 “) |
| Parallax setting |
91.4 m (100 yds) |
| Adjustment range at 100 m |
300 cm |
| Adjustment per click at 100 m |
1.4 cm |
| Centre tube diameter |
30 mm |
| Eyepiece tube diameter |
44 mm |
| Objective tube diameter |
30 mm |
Zeiss Conquest V4 1-4 X 24
Pris 6.599,00

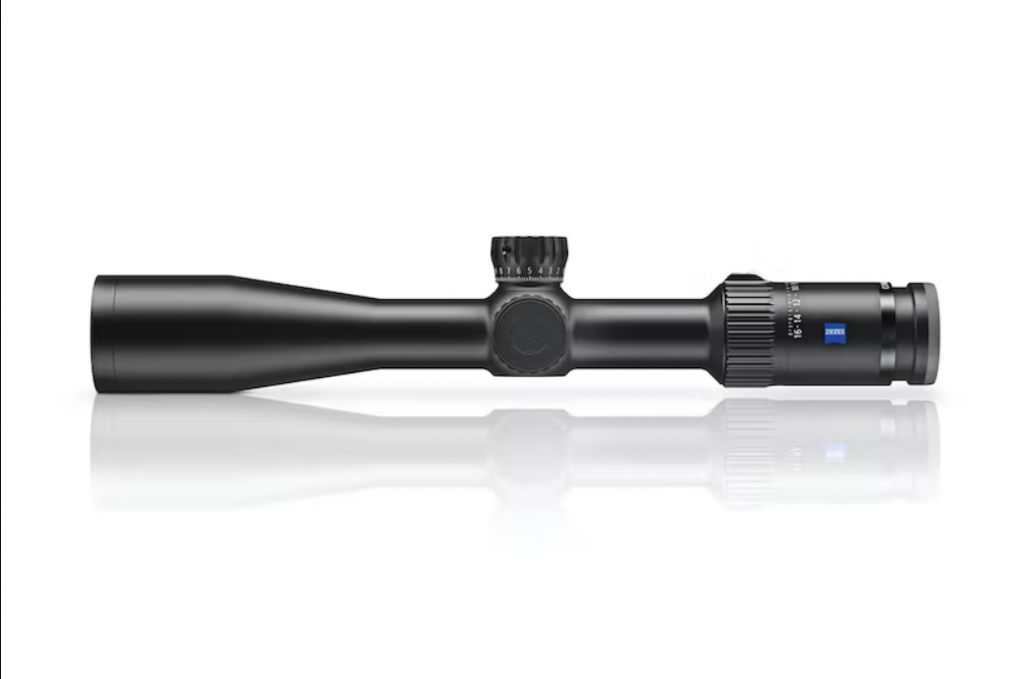

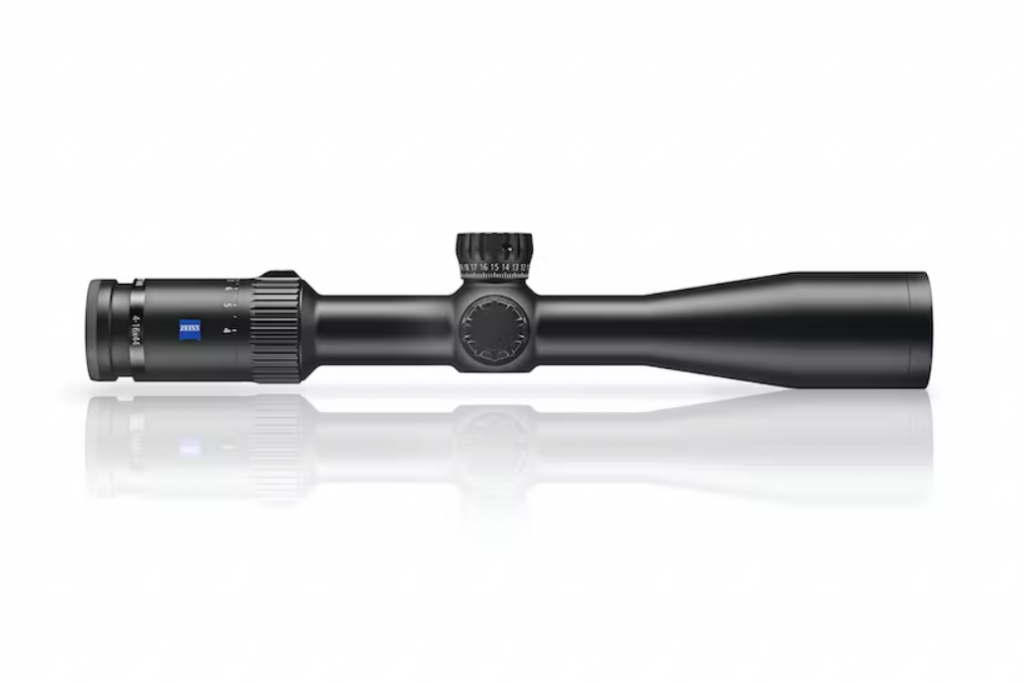

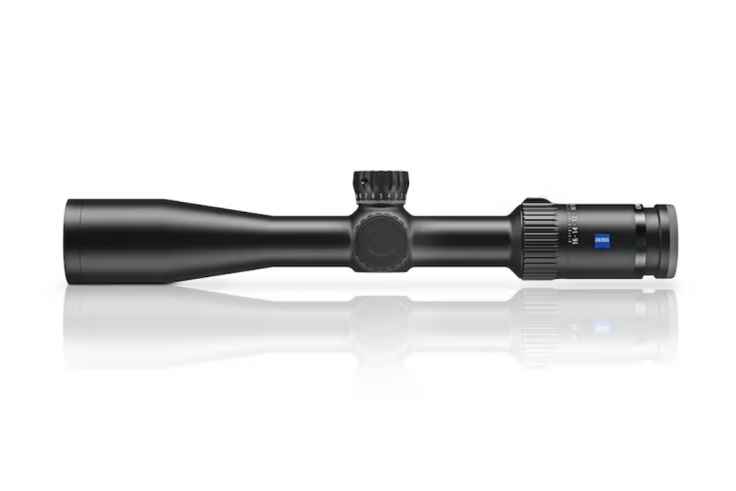

Zeiss Conquest V4 4-16 x 44 Ballistic
Zeiss Conquest V4 4-16 x 44 Ballistic
| Magnification |
4 – 16 x |
| Effective lens diameter |
33.2 – 44 mm |
| Light transmission |
90% |
| Exit pupil diameter |
8.5 – 2.8 mm |
| Twilight factor |
11.5 – 26.5 |
| Field of view at 100 m (yds) |
9.5 – 2.4 m (28 – 7 ft) |
| Objective viewing angle |
5.4° – 1.4° |
| Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
| Eye relief |
90 mm (3.54 “) |
| Parallax setting |
9.1 m – ∞ (10 yds – ∞) |
| Adjustment range at 100 m |
230 × 175 cm |
| Adjustment per click at 100 m |
1/4 MoA (0.7 cm /100 m) |
| Centre tube diameter |
30 mm |
| Eyepiece tube diameter |
44 mm |
| Objective tube diameter |
50 mm |
Zeiss Conquest V4 4-16 x 44 Ballistic
Pris 7.899,00 Kr

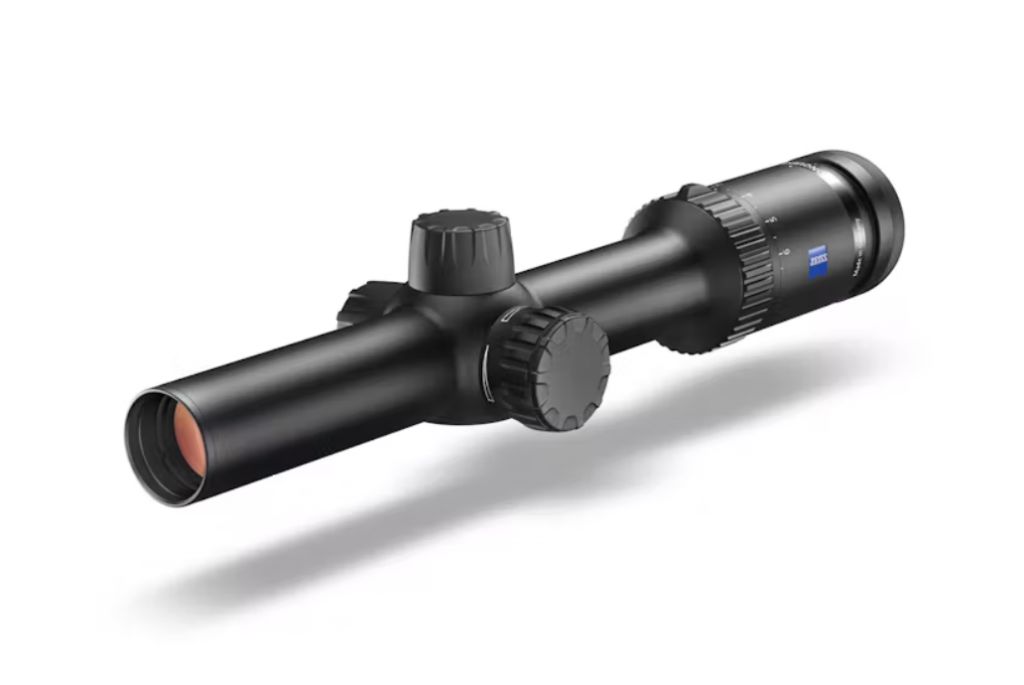

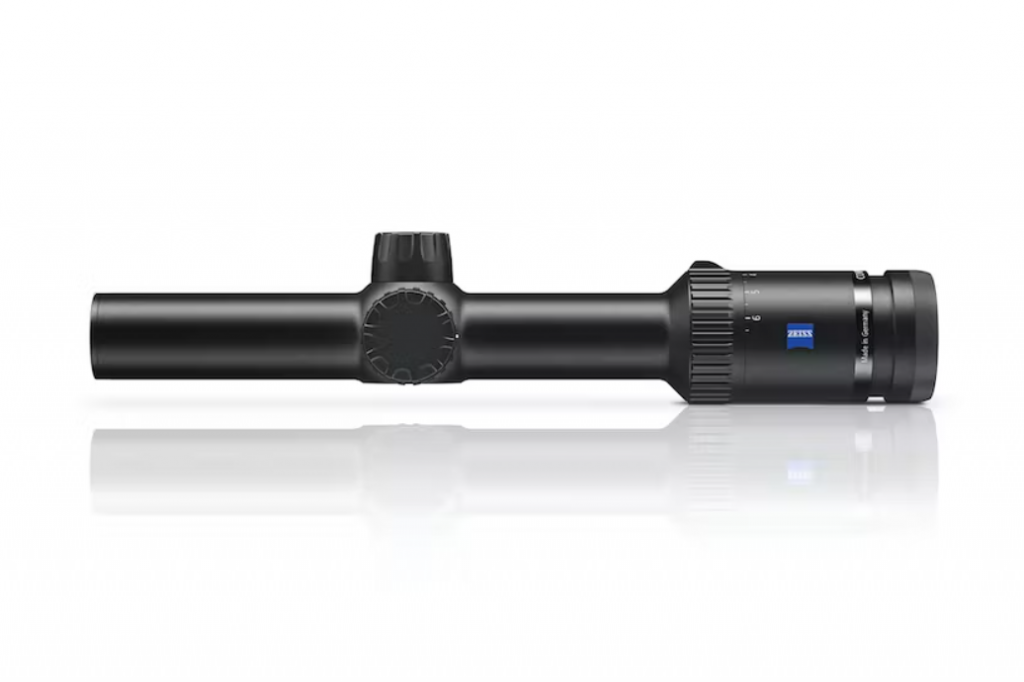

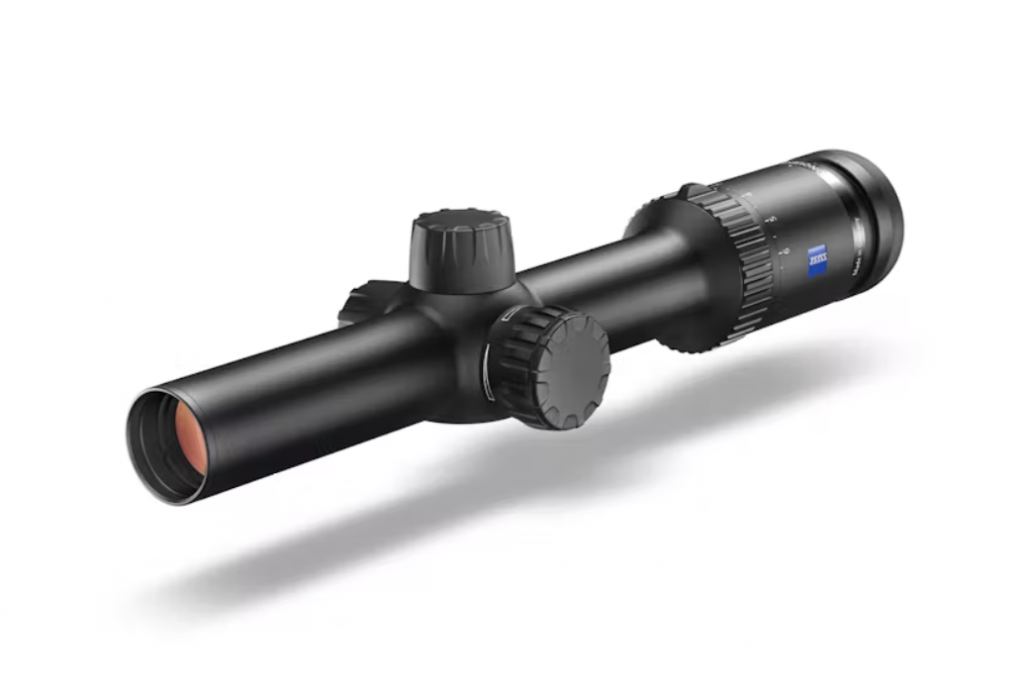

Zeiss Conquest V6 1.1-4 x 24
Zeiss Conquest V6 1.1-6 x 24 options
| Magnification |
1.1 – 6.5 × |
| Effective lens diameter |
10.5 – 24 mm |
| Light transmission |
92% |
| Exit pupil diameter |
9.5 – 3.7 mm |
| Twilight factor |
3.1 – 12.5 |
| Field of view at 100 m (yds) |
38.1 – 6.6 m (114 – 20 ft) |
| Objective viewing angle |
21.6° – 3.8° |
| Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
| Eye relief |
90 mm (3.54 “) |
| Parallax setting |
100 m (109 yds) |
| Square adjustment range at 100 m |
300 cm |
| Adjustment per click at 100 m |
1 cm |
| Centre tube diameter |
30 mm |
| Eyepiece tube diameter |
45.5 mm |
| Objective tube diameter |
30 mm |
Zeiss Conquest V6 1.1-6 x 24
Pris 11.499,00 Kr

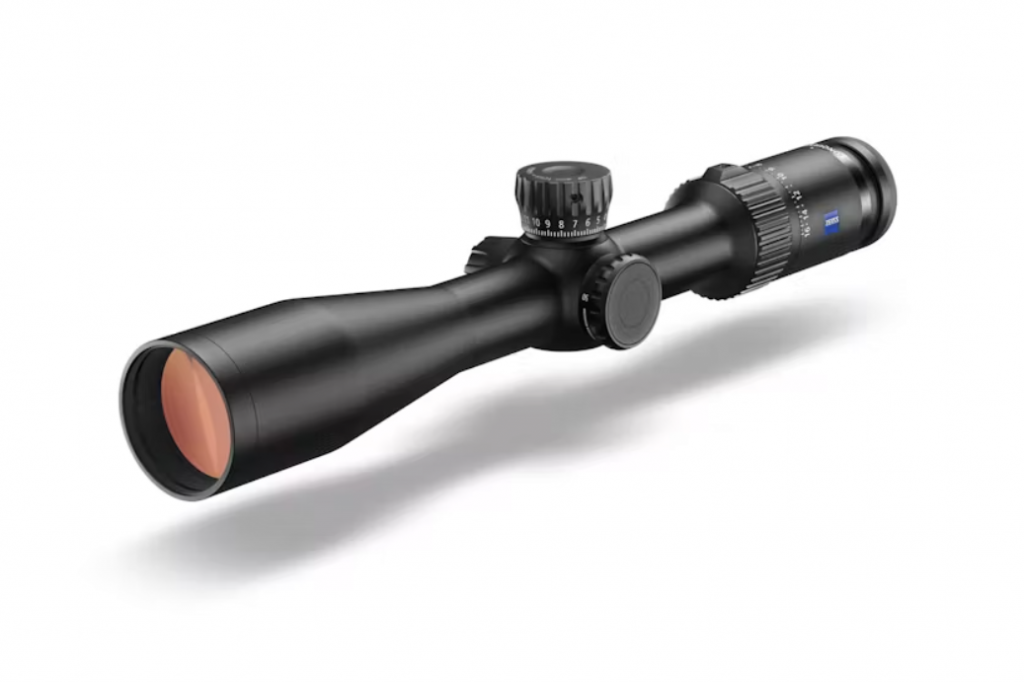

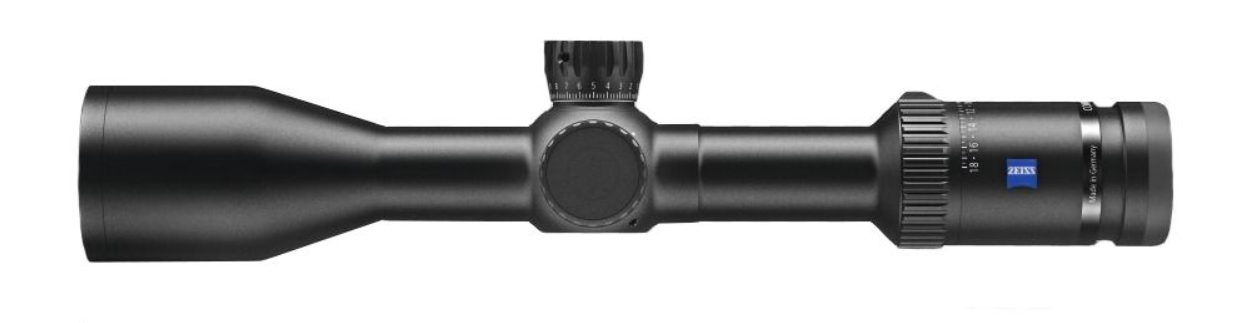

Zeiss Conquest V6 3-18 x 50 Ballistic
| Magnification |
3 – 18 × |
| Effective lens diameter |
28.6 – 50 mm |
| Light transmission |
92% |
| Exit pupil diameter |
9.5 – 2.8 mm |
| Twilight factor |
8.5 – 30.0 |
| Field of view at 100 m (yds) |
12.4 – 2.1 m (37 – 6 ft) |
| Objective viewing angle |
7.1° – 1.2° |
| Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
| Eye relief |
90 mm (3.54 “) |
| Parallax setting |
∞ |
| Square adjustment range at 100 m |
300 × 170 m |
| Adjustment per click at 100 m |
1/4 MoA (0.7 cm /100 m) |
| Centre tube diameter |
30 mm |
| Eyepiece tube diameter |
45.5 mm |
| Objective tube diameter |
56 mm |
Zeiss Conquest V6 3-18 x 50

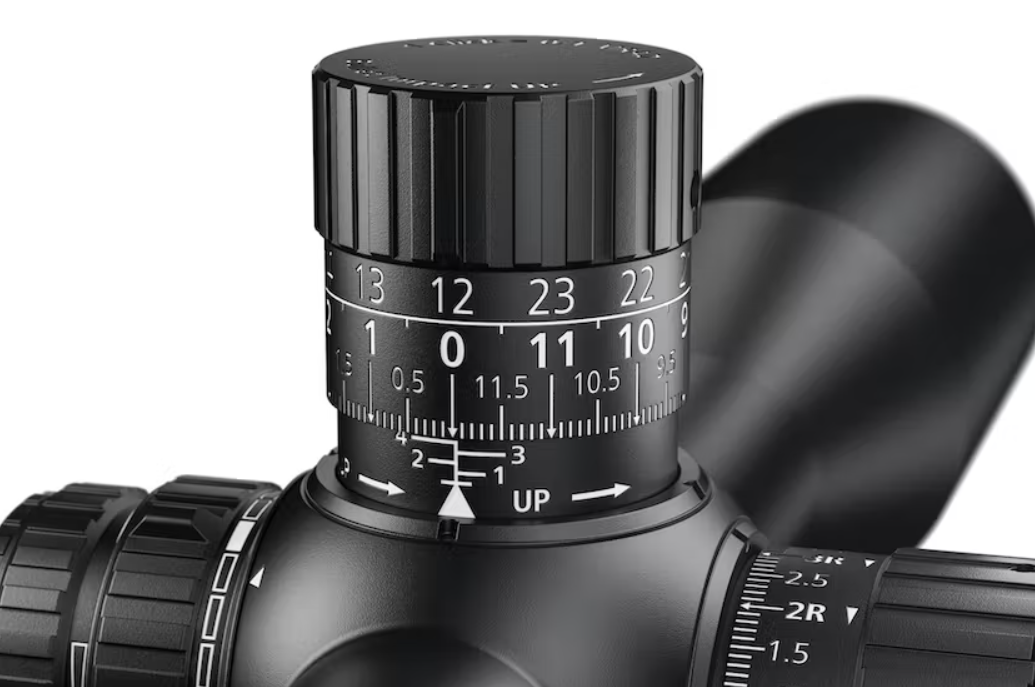

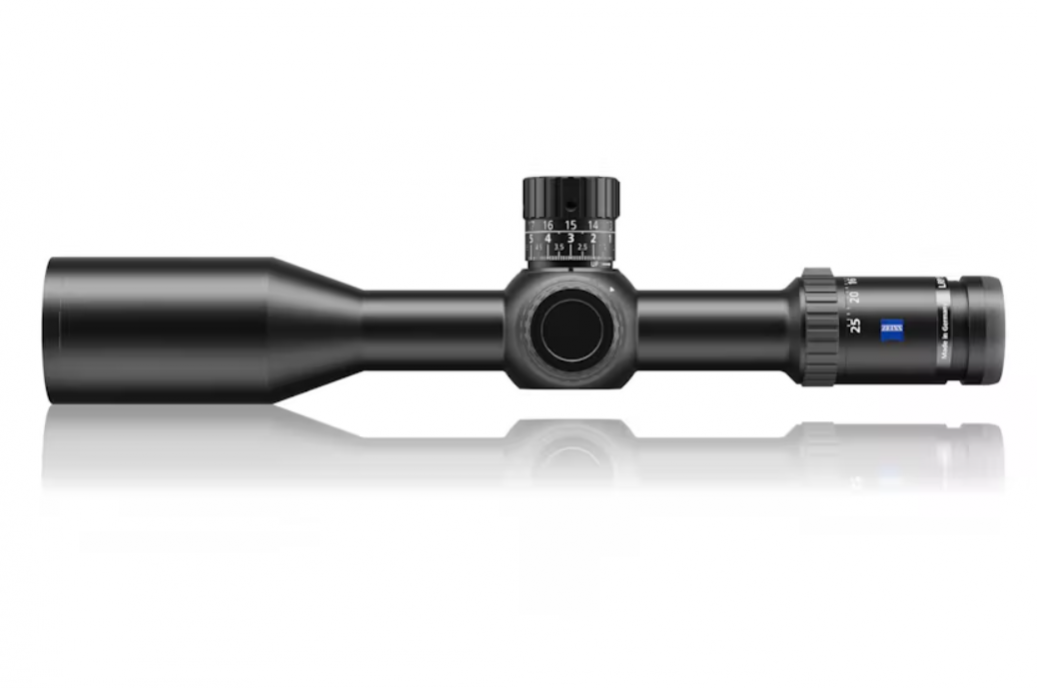

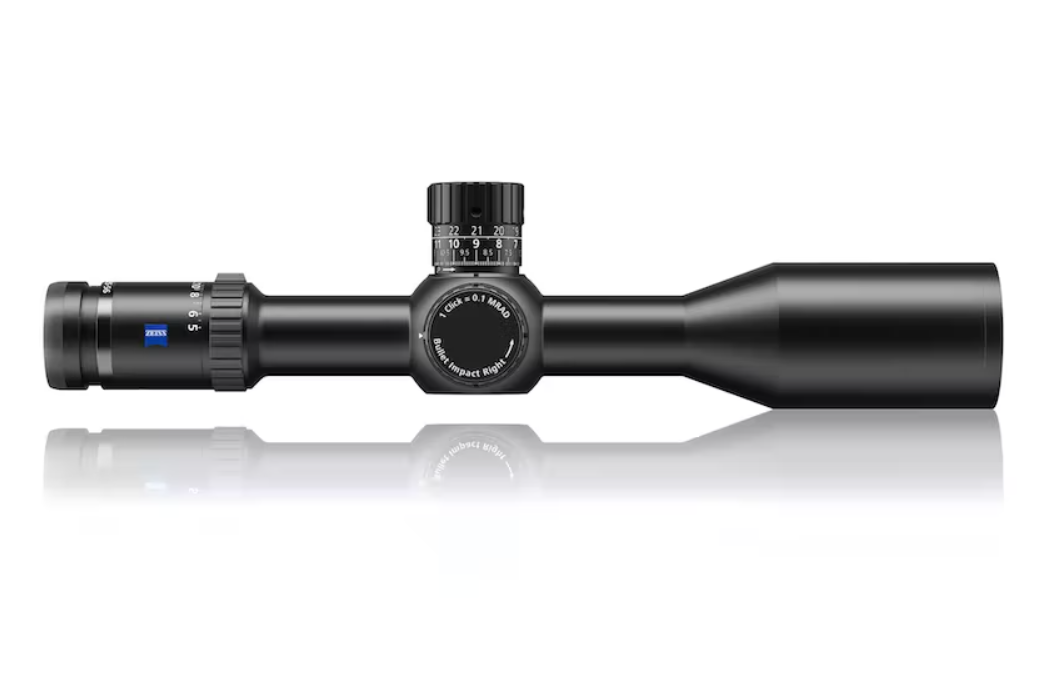

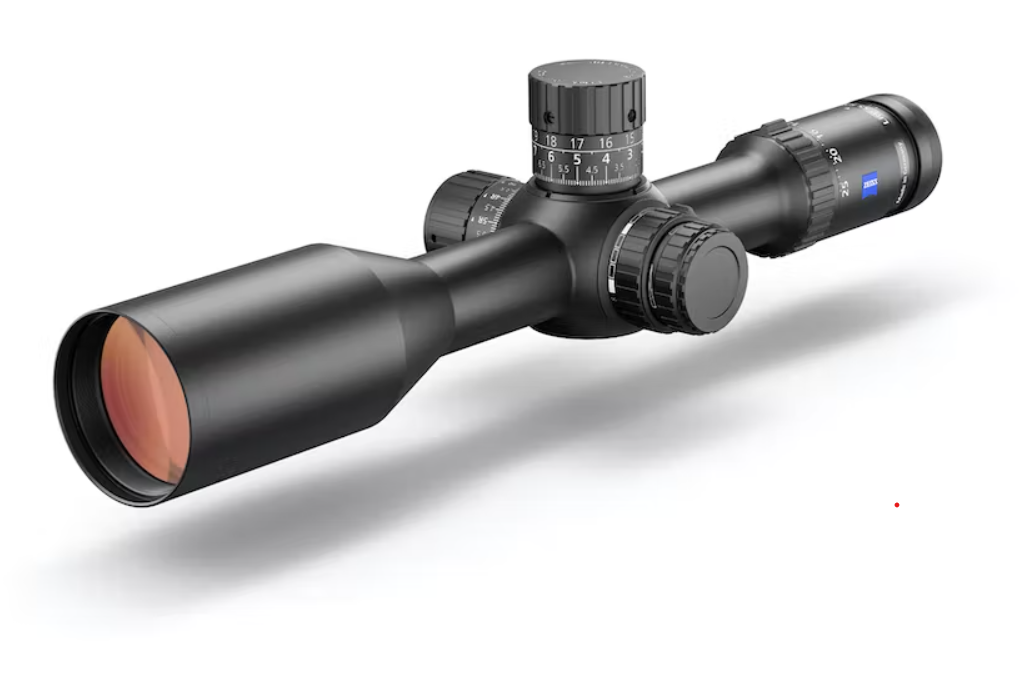

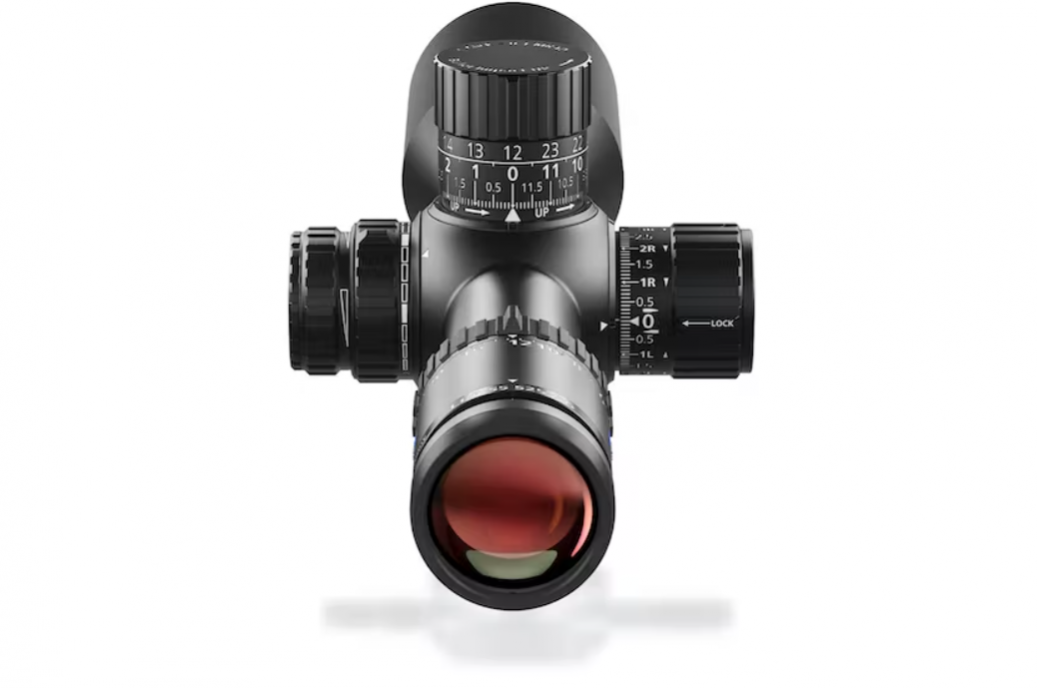

Zeiss LRP S5 525-56
| Magnification |
5 – 25 × |
| Effective lens diameter |
56 mm |
| Light transmission |
90% |
| Exit pupil diameter |
9.2 – 2.4 mm |
| Twilight factor |
16.7 – 37.4 |
| Field of view at 100 m (yds) |
7.5 – 1.5 m (23 – 5 ft) |
| Objective viewing angle |
4.3° – 0.8° |
| Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
| Eye relief |
90 mm (3.54 “) |
| Parallax setting |
25 m – ∞ (27 yds – ∞) |
| Vertical adjustment range at 100 m |
40,7 MRAD | 140 MOA |
| Lateral adjustment range at 100 m |
24 MRAD | 60 MOA |
| Adjustment per click at 100 m |
0,1 MRAD | 0,25 MOA |
| Centre tube diameter |
34 mm |
| Eyepiece tube diameter |
46 mm |
| Objective tube diameter |
62 mm |
Zeiss LRP S5 525-56
Pris 24.449,00 Kr
